S&S CYCLE

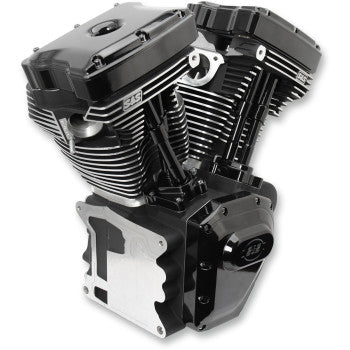

0901-0241 - 310-0900A T124HC Series Long-Block Engine
0901-0241 - 310-0900A T124HC Series Long-Block Engine
SKU:0901-0241
Low stock: 10 left
Couldn't load pickup availability
Catalog Corrections:
NOTE: Fatbook '21 - This is a T124HC engine.
Features
- High Compression, 10.8:1 for the ultimate in street performance
- No fuel system or ignition systems included
- Special head machining fits stock length intake manifolds (S&S manifold size 410)
- Stock style breathing system; compatible with stock and most performance air cleaners
- Includes Super Stock heads, crankcases, high flow oil pump, cam cover and easy start cams
- Specs: displacement 124"; bore 4-1/8"; stroke 4-5/8"; 640 cam; piston type forged flat top
- Oil line installation kit required.
- Cylinder heads on T-Series long block engines are 99-05 style. Owners of 06 models will need to purchase a set of 99-05 style, offset intake flanges.
- Cylinder heads on these engines are specially machined to compensate for the non-stock cylinder length. As a result, they are compatible with manifolds and throttle bodies with stock length intake runners. In addition, the breather vent bolt locations have been adjusted so they are in the stock location, so stock style air cleaner back plates will bolt up to these engines.
Emissions Notice
WARNING
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles. Click here for important emission definitions and regulatory compliance and warranty information.
Catalog
- DRAG FATBOOK / Page 684
Specs
| PRODUCT NAME | ENGINE |
| TYPE | LONG BLOCK |
| MODEL | T-SERIES |
| BASE COLOR | BLACK |
| COLOR/FINISH | BLACK |
| BORE SIZE | 4.125" |
| COMPRESSION RATIO | 10.8:1 |
| DISPLACEMENT | 124" |
| UNITS | EACH |
| RIDING STYLE | STREET |
Package info
| WEIGHT | 156 LBS |
| HEIGHT | 20 |
| LENGTH | 26.5 |
| WIDTH | 24.5 |
Fitments
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS |
| 2012-2016 | Harley-Davidson | Switchback FLD |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF |
| 2008 | Harley-Davidson | Screamin' Eagle Dyna FXDSE2 |
| 2007 | Harley-Davidson | Screamin' Eagle Dyna FXDSE |
| 2006-2017 | Harley-Davidson | Street Bob FXDB |
| 2006-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI |
| 2006-2010 | Harley-Davidson | Super Glide EFI FXDI |
| 2006-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL |
| 2006-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI |
| 2006 | Harley-Davidson | Super Glide FXD35 |
| 2006 | Harley-Davidson | Wide Glide FXDWG |
| 2006 | Harley-Davidson | Super Glide FXD |
| 2006 | Harley-Davidson | Low Rider FXDL |
Fitment Disclosure
This quick reference fitment information is provided to
direct you to our catalog information and the manufacturer's information.
Consult manufacturer publication(s) and/or website(s) for specific fitment and
application information and other important information. This fitment
information is based upon the stock version of the motorcycle or unit
referenced and any accessory added, or other modification could invalidate the
quick reference information provided.
